Warehouse Class Diagram

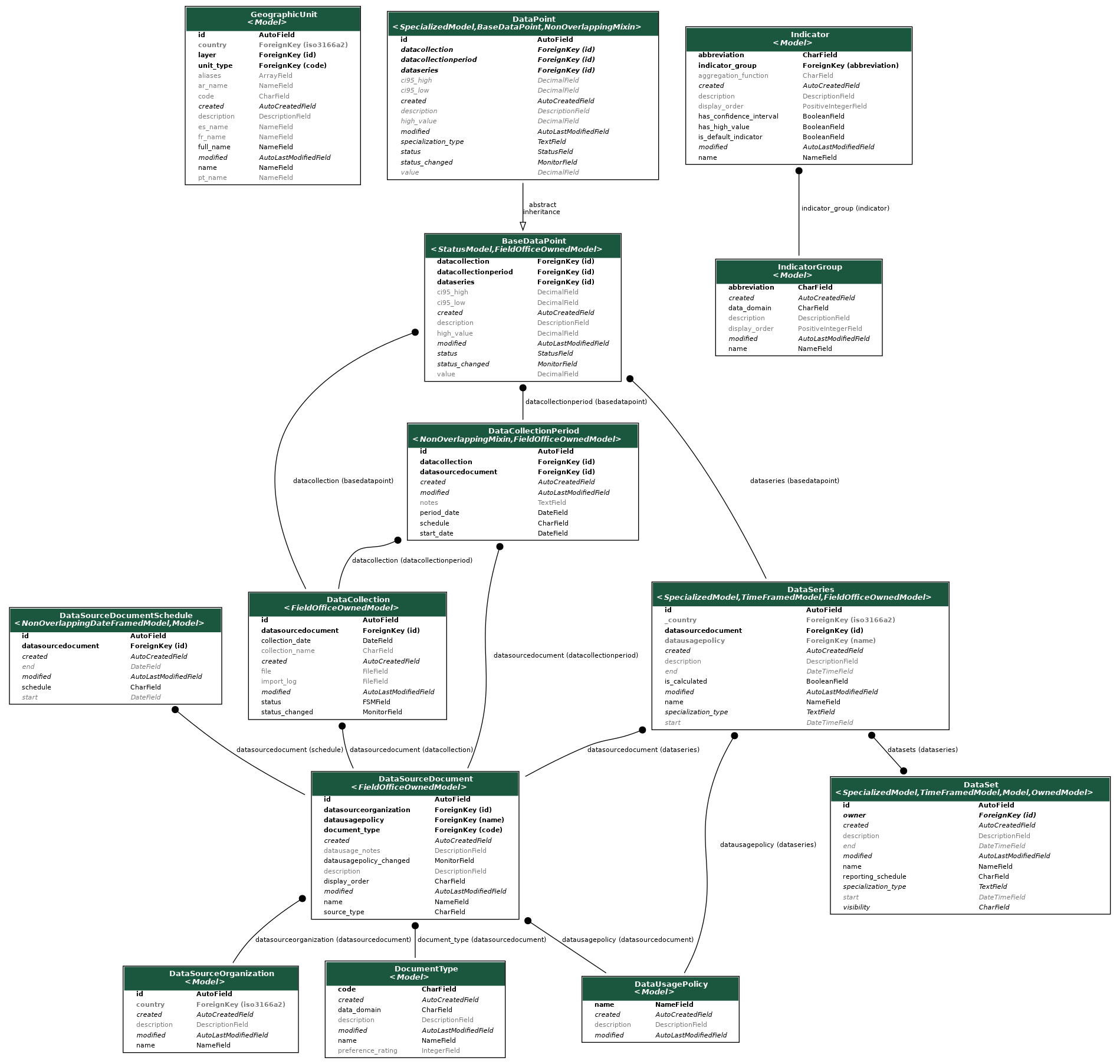

The diagram below shows the main classes in the Warehouse module and how they relate to one another.

digraph model_graph { // Dotfile by Django-Extensions graph_models // Created: 2020-04-03 17:55 // Cli Options: --theme django2018 --include-models DocumentType,DataSourceOrganization,DataSourceDocument,DataUsagePolicy,DataSourceDocumentSchedule,DataSeries,DataSet,DataCollection,DataCollectionPeriod,BaseDataPoint,DataPoint,IndicatorGroup,Indicator,GeographicUnit spatial warehouse fontname = "Roboto" fontsize = 8 splines = true node [ fontname = "Roboto" fontsize = 8 shape = "plaintext" ] edge [ fontname = "Roboto" fontsize = 8 ] // Labels spatial_models_GeographicUnit [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> GeographicUnit<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>country</B></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>ForeignKey (iso3166a2)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>layer</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>unit_type</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (code)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">aliases</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">ArrayField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">ar_name</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">code</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">es_name</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">fr_name</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">full_name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">pt_name</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">NameField</FONT> </TD></TR> </TABLE> >] warehouse_models_BaseDataPoint [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> BaseDataPoint<BR/>&lt;<FONT FACE="Roboto"><I>StatusModel,FieldOfficeOwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datacollection</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datacollectionperiod</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>dataseries</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">ci95_high</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DecimalField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">ci95_low</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DecimalField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">high_value</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DecimalField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>status</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>StatusField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>status_changed</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>MonitorField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">value</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DecimalField</FONT> </TD></TR> </TABLE> >] warehouse_models_DataUsagePolicy [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataUsagePolicy<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>name</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>NameField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> </TABLE> >] warehouse_models_DataSourceOrganization [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataSourceOrganization<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>country</B></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>ForeignKey (iso3166a2)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> </TABLE> >] warehouse_models_DocumentType [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DocumentType<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>code</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>CharField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">data_domain</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">preference_rating</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">IntegerField</FONT> </TD></TR> </TABLE> >] warehouse_models_DataSourceDocument [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataSourceDocument<BR/>&lt;<FONT FACE="Roboto"><I>FieldOfficeOwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datasourceorganization</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datausagepolicy</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (name)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>document_type</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (code)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">datausage_notes</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">datausagepolicy_changed</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">MonitorField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">display_order</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">source_type</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> </TABLE> >] warehouse_models_DataSourceDocumentSchedule [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataSourceDocumentSchedule<BR/>&lt;<FONT FACE="Roboto"><I>NonOverlappingDateFramedModel,Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datasourcedocument</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>end</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">schedule</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>start</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateField</I></FONT> </TD></TR> </TABLE> >] warehouse_models_DataSeries [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataSeries<BR/>&lt;<FONT FACE="Roboto"><I>SpecializedModel,TimeFramedModel,FieldOfficeOwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>_country</B></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>ForeignKey (iso3166a2)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datasourcedocument</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>datausagepolicy</B></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><B>ForeignKey (name)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>end</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateTimeField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">is_calculated</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">BooleanField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>specialization_type</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>TextField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>start</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateTimeField</I></FONT> </TD></TR> </TABLE> >] warehouse_models_DataSet [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataSet<BR/>&lt;<FONT FACE="Roboto"><I>SpecializedModel,TimeFramedModel,Model,OwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I><B>owner</B></I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I><B>ForeignKey (id)</B></I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>end</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateTimeField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">reporting_schedule</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>specialization_type</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>TextField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>start</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DateTimeField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>visibility</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>CharField</I></FONT> </TD></TR> </TABLE> >] warehouse_models_DataCollection [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataCollection<BR/>&lt;<FONT FACE="Roboto"><I>FieldOfficeOwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datasourcedocument</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">collection_date</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">DateField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">collection_name</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">file</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">FileField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">import_log</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">FileField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">status</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">FSMField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">status_changed</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">MonitorField</FONT> </TD></TR> </TABLE> >] warehouse_models_DataCollectionPeriod [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataCollectionPeriod<BR/>&lt;<FONT FACE="Roboto"><I>NonOverlappingMixin,FieldOfficeOwnedModel</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datacollection</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>datasourcedocument</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (id)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">notes</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">TextField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">period_date</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">DateField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">schedule</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">start_date</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">DateField</FONT> </TD></TR> </TABLE> >] warehouse_models_DataPoint [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> DataPoint<BR/>&lt;<FONT FACE="Roboto"><I>SpecializedModel,BaseDataPoint,NonOverlappingMixin</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>id</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>AutoField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I><B>datacollection</B></I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I><B>ForeignKey (id)</B></I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I><B>datacollectionperiod</B></I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I><B>ForeignKey (id)</B></I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I><B>dataseries</B></I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I><B>ForeignKey (id)</B></I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>ci95_high</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DecimalField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>ci95_low</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DecimalField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>description</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DescriptionField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>high_value</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DecimalField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>specialization_type</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>TextField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>status</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>StatusField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>status_changed</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>MonitorField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>value</I></FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto"><I>DecimalField</I></FONT> </TD></TR> </TABLE> >] warehouse_models_IndicatorGroup [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> IndicatorGroup<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>abbreviation</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>CharField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">data_domain</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">display_order</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">PositiveIntegerField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> </TABLE> >] warehouse_models_Indicator [label=< <TABLE BGCOLOR="white" BORDER="1" CELLBORDER="0" CELLSPACING="0"> <TR><TD COLSPAN="2" CELLPADDING="5" ALIGN="CENTER" BGCOLOR="#1b563f"> <FONT FACE="Roboto" COLOR="white" POINT-SIZE="10"><B> Indicator<BR/>&lt;<FONT FACE="Roboto"><I>Model</I></FONT>&gt; </B></FONT></TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>abbreviation</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>CharField</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><B>indicator_group</B></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><B>ForeignKey (abbreviation)</B></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">aggregation_function</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">CharField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>created</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoCreatedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">description</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">DescriptionField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT COLOR="#7B7B7B" FACE="Roboto">display_order</FONT> </TD><TD ALIGN="LEFT"> <FONT COLOR="#7B7B7B" FACE="Roboto">PositiveIntegerField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">has_confidence_interval</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">BooleanField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">has_high_value</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">BooleanField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">is_default_indicator</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">BooleanField</FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto"><I>modified</I></FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto"><I>AutoLastModifiedField</I></FONT> </TD></TR> <TR><TD ALIGN="LEFT" BORDER="0"> <FONT FACE="Roboto">name</FONT> </TD><TD ALIGN="LEFT"> <FONT FACE="Roboto">NameField</FONT> </TD></TR> </TABLE> >] // Relations warehouse_models_BaseDataPoint -> warehouse_models_DataCollectionPeriod [label=" datacollectionperiod (basedatapoint)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_BaseDataPoint -> warehouse_models_DataCollection [label=" datacollection (basedatapoint)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_BaseDataPoint -> warehouse_models_DataSeries [label=" dataseries (basedatapoint)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSourceDocument -> warehouse_models_DataSourceOrganization [label=" datasourceorganization (datasourcedocument)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSourceDocument -> warehouse_models_DataUsagePolicy [label=" datausagepolicy (datasourcedocument)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSourceDocument -> warehouse_models_DocumentType [label=" document_type (datasourcedocument)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSourceDocumentSchedule -> warehouse_models_DataSourceDocument [label=" datasourcedocument (schedule)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSeries -> warehouse_models_DataSourceDocument [label=" datasourcedocument (dataseries)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSeries -> warehouse_models_DataUsagePolicy [label=" datausagepolicy (dataseries)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataSeries -> warehouse_models_DataSet [label=" datasets (dataseries)"] [arrowhead=dot arrowtail=dot, dir=both]; warehouse_models_DataCollection -> warehouse_models_DataSourceDocument [label=" datasourcedocument (datacollection)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataCollectionPeriod -> warehouse_models_DataSourceDocument [label=" datasourcedocument (datacollectionperiod)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataCollectionPeriod -> warehouse_models_DataCollection [label=" datacollection (datacollectionperiod)"] [arrowhead=none, arrowtail=dot, dir=both]; warehouse_models_DataPoint -> warehouse_models_BaseDataPoint [label=" abstract\ninheritance"] [arrowhead=empty, arrowtail=none, dir=both]; warehouse_models_Indicator -> warehouse_models_IndicatorGroup [label=" indicator_group (indicator)"] [arrowhead=none, arrowtail=dot, dir=both]; }
